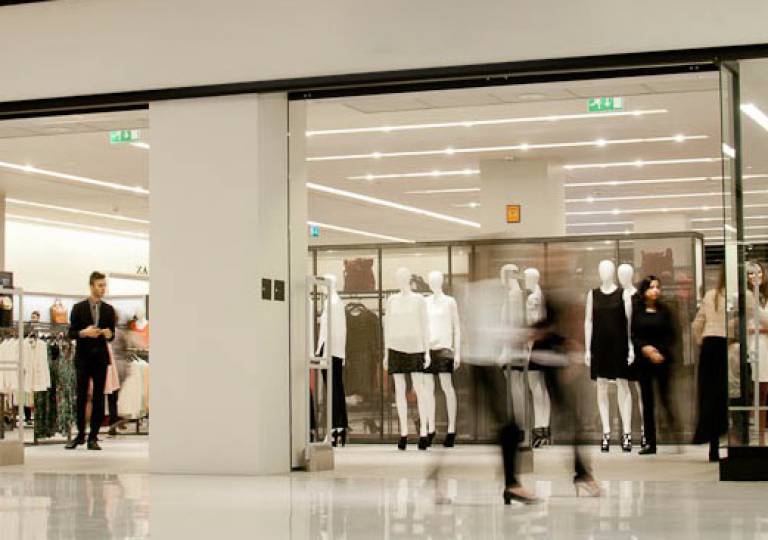

LOCAL COMERCIAL EN C.C. JK IGUATEMI 1

COMMERCIAL VENUE IN C.C. JK IGUATEMI

Brazil, SAO PAULO · 2012
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 420
Construction surface (m2): 1.948
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 1,948 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 120 TR, 1 fan-coil with 30 TR, 2 fan-coils with 25 TR, 2 fan-coils with 20 TR and 1 fan-coil with 7.5 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

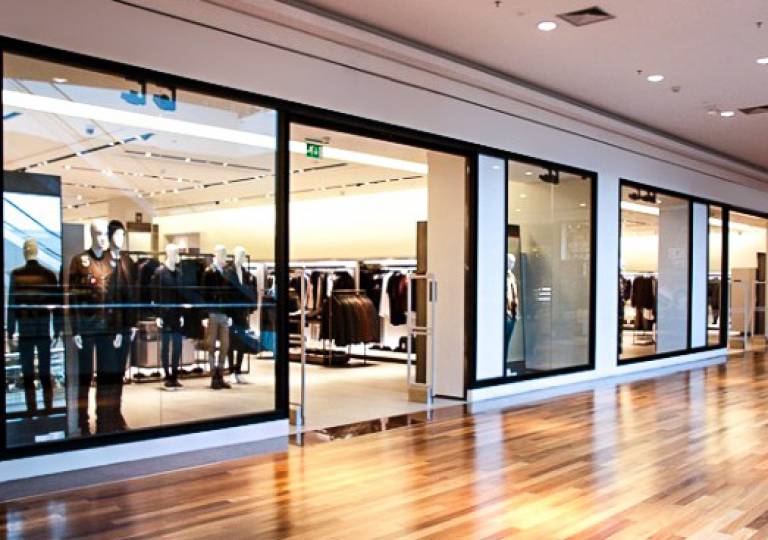

LOCAL COMERCIAL EN C.C. JUNDIAI SHOPPING 1

COMMERCIAL VENUE IN C.C. JUNDIAI SHOPPING

Brazil, JUNDIAI · 2012
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 420
Construction surface (m2): 1.985
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 1,985 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 120 TR, 3 fan-coils with 25 TR, 3 fan-coil with 15 TR, 1 fan-coil with 8.5 TR and 1 fan-coil with 7.5 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

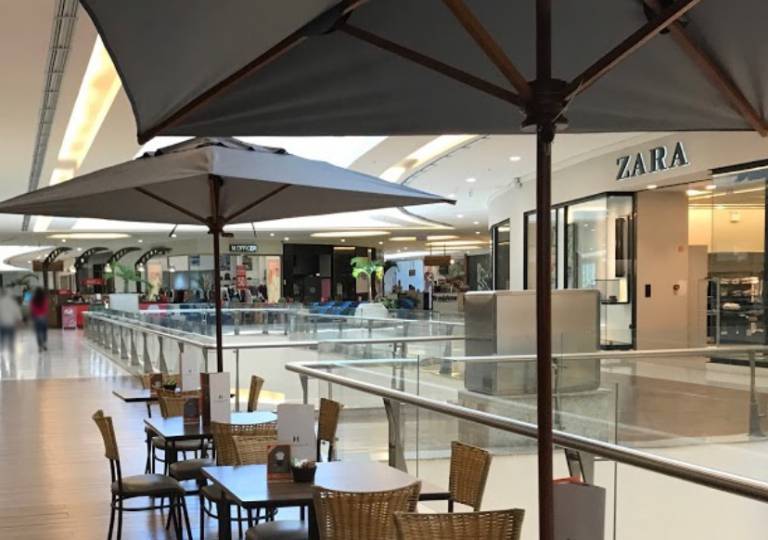

LOCAL COMERCIAL EN C.C. PARK EUROPEU 1

COMMERCIAL VENUE IN C.C. (shopping mall) PARK EUROPEU

Brazil, BLUMENAU · 2011
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 420
Construction surface (m2): 2.275
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 2,275 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 120 TR, 4 fan-coils with 25 TR and 2 fan-coils with 17.5 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

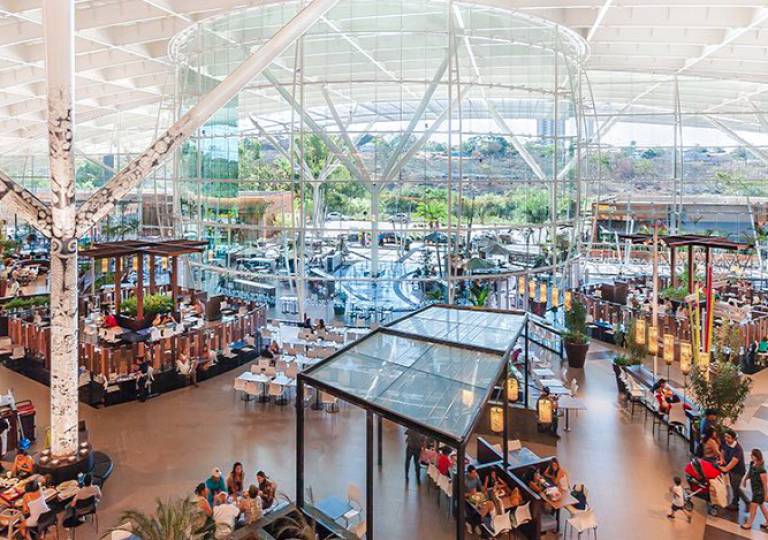

LOCAL COMERCIAL EN C.C. PASSEIO DAS AGUAS 1

COMMERCIAL VENUE IN C.C. PASSEIO DAS AGUAS

Brazil, GOIANIA · 2014
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 525
Construction surface (m2): 2.728
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP, REMOTE ENERGY MANAGEMENT
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 2,728 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 155 TR, 2 fan-coils with 20 TR, 5 fan-coil with 15 TR and 2 fan-coil with 15 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

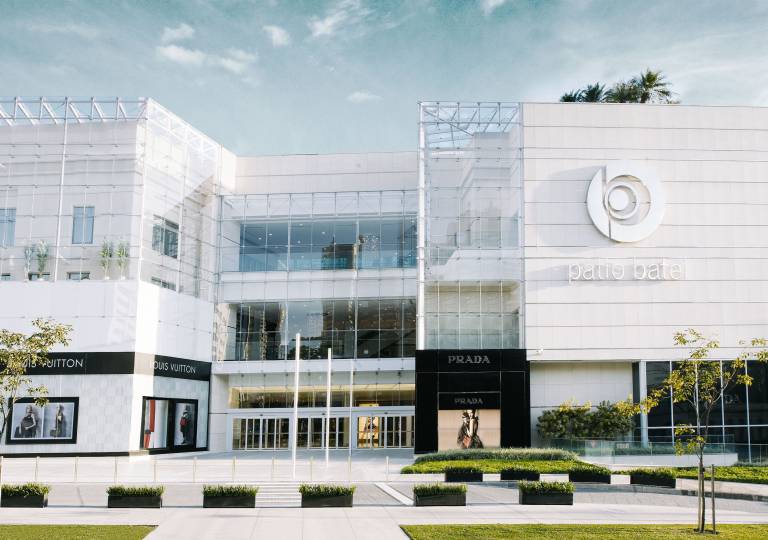

LOCAL COMERCIAL EN C.C. PATIO BATEL 1

COMMERCIAL VENUE IN C.C. PATIO BATEL

Brazil, CURITIBA · 2013
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 525
Construction surface (m2): 1.930
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 1,930 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 150 TR, 1 fan-coil with a capacity of 25 TR, 3 fan-coils with 20 TR, 1 fan-coil with 17.5 TR, 1 fan-coil with 3 TR and 5 fan-coils with 2 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

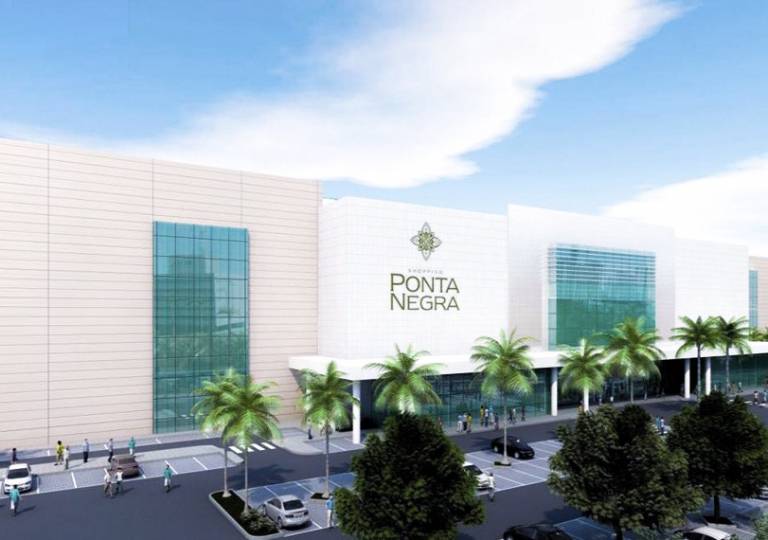

LOCAL COMERCIAL EN C.C. PONTA NEGRA 1

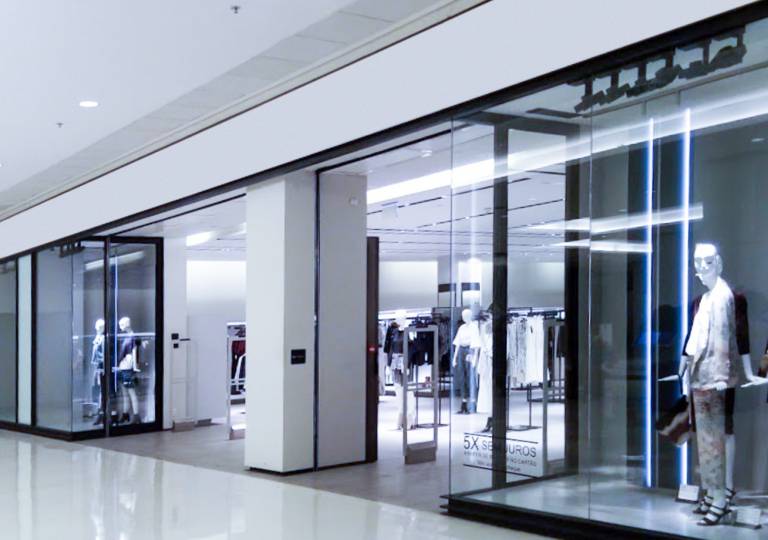

LOCAL COMERCIAL EN C.C. PONTA NEGRA 2

COMMERCIAL VENUE IN C.C. PONTA NEGRA

Brazil, MANAUS · 2013
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 560
Construction surface (m2): 2.177
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound and fire protection systems in the textile sector space with an area of 2,177 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 160 TR, 2 fan-coils with 30 TR, 3 fan-coils with 25 TR, 1 fan-coil with 12.5 TR and 1 fan-coil with 6 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

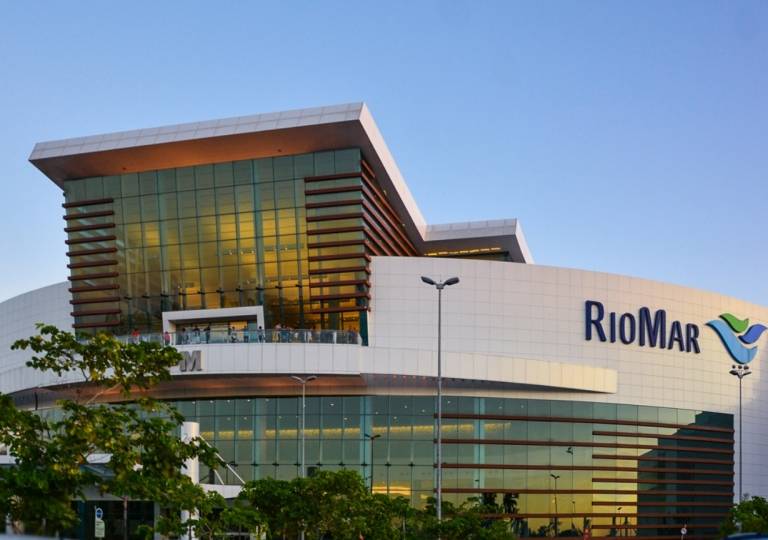

LOCAL COMERCIAL EN C.C. RIOMAR SHOPPING 1

COMMERCIAL VENUE IN C.C. RIOMAR SHOPPING

Brazil, RECIFE · 2012
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 560
Construction surface (m2): 2.111
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 2,111 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 160 TR, 3 fan-coils with 30 TR, 2 fan-coils with 25 TR and 1 fan-coil with 22.5 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.

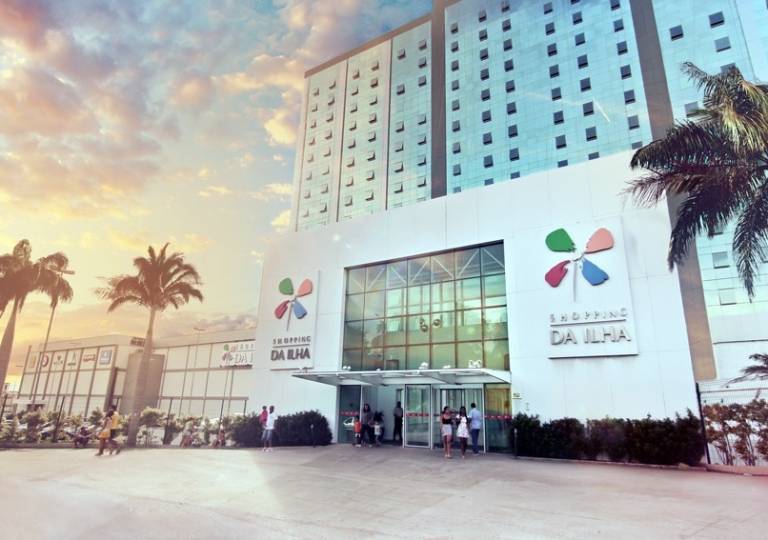

LOCAL COMERCIAL EN C.C. SHOPPING DA ILHA 1

COMMERCIAL VENUE IN C.C. SHOPPING DA ILHA

Brazil, SAO LUIS · 2012
Categoy: Commertial building, COMMERCIAL VENUES
Installed power (KW): 420
Construction surface (m2): 2.125
Specialization: AIR CONDITIONING, VENTILATION, SOUND SYSTEM, FP
Installation of air conditioning, sound systems and fire protection systems in the textile sector space with an area of 2,125 m2, divided into sales area and warehouse. The air conditioning installation consists of its own cold water system with a capacity of 120 TR, 1 fan-coil with a capacity of 25 TR, 3 fan-coils with 20 TR, 1 fan-coil with 17.5 TR, 1 fan-coil with 12.5 TR and 1 fan-coil with 6 TR. The sound system is equipped with a control center operating all the store's communications by means of voice and image input of the sales and storage areas. The fire protection and fire fighting system is comprised of fire hydrants and automatic showers, besides the smoke detection system, which is interconnected with the shopping center.
